DESCRIPTION

David Black edition  only 20 pieces made for the world market!!!

Analog effect.

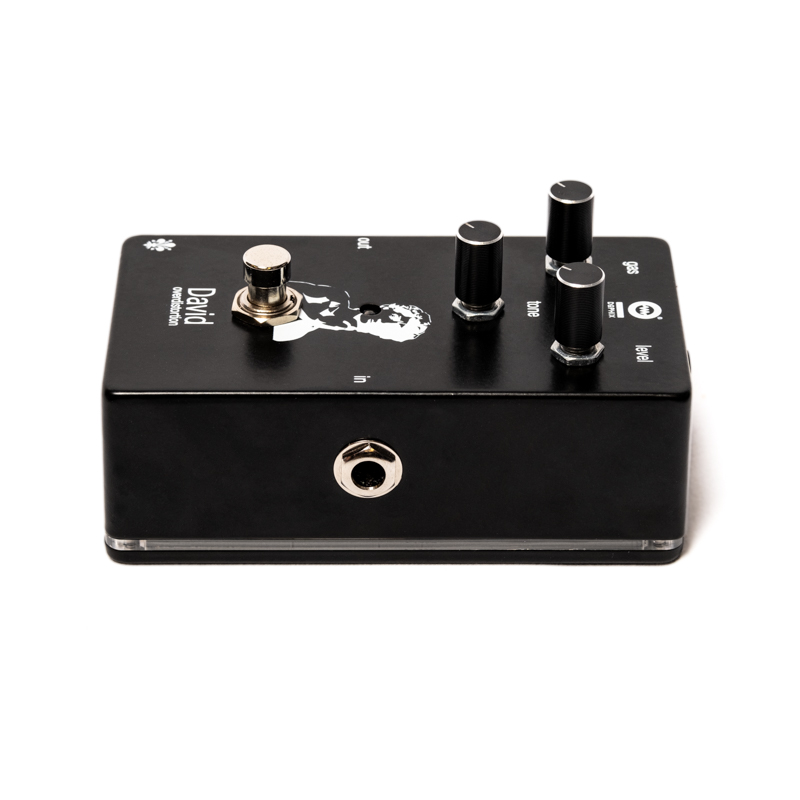

Input/output Jack from 6.3 mm 1/4 “placed sideways to the pedal.

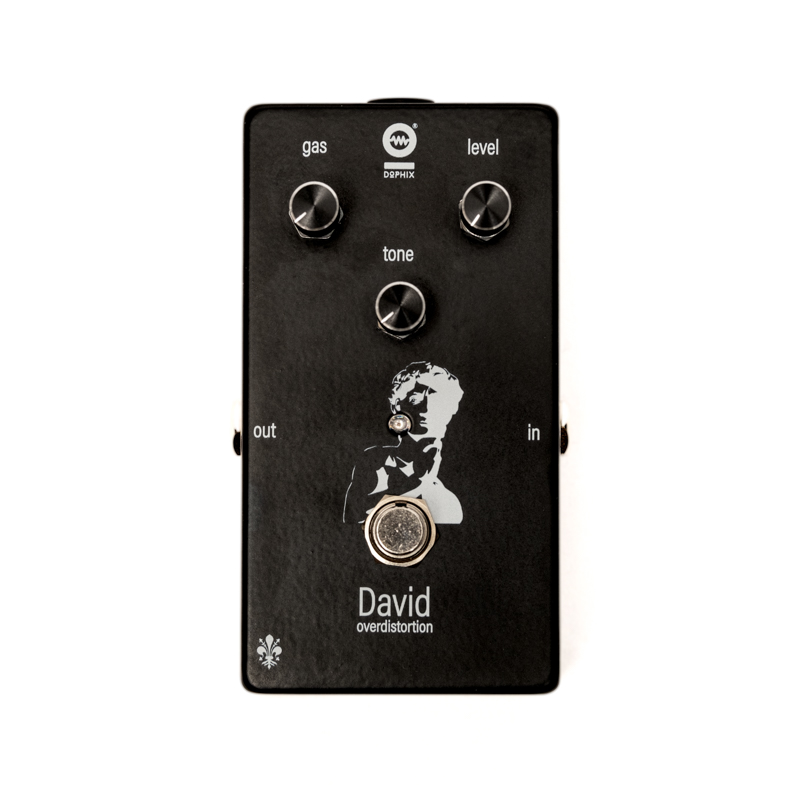

Three controls allow the adjustment of the gain, the tone (GAS) and the volume.

The front LED indicates the status of the effect activation. The dynamic gain control allows to obtain a wide range of distortions, ranging from a slight crunch, to a full-bodied distortion up to high-gain.

TRUE BYPASS switch, carbon resistors and high quality components are one of the specific choices made standard for our pedals. These components are wanted in a product with electronic devices belonging to a vintage series, Elements that distinguish a character and a warm and defined sound.

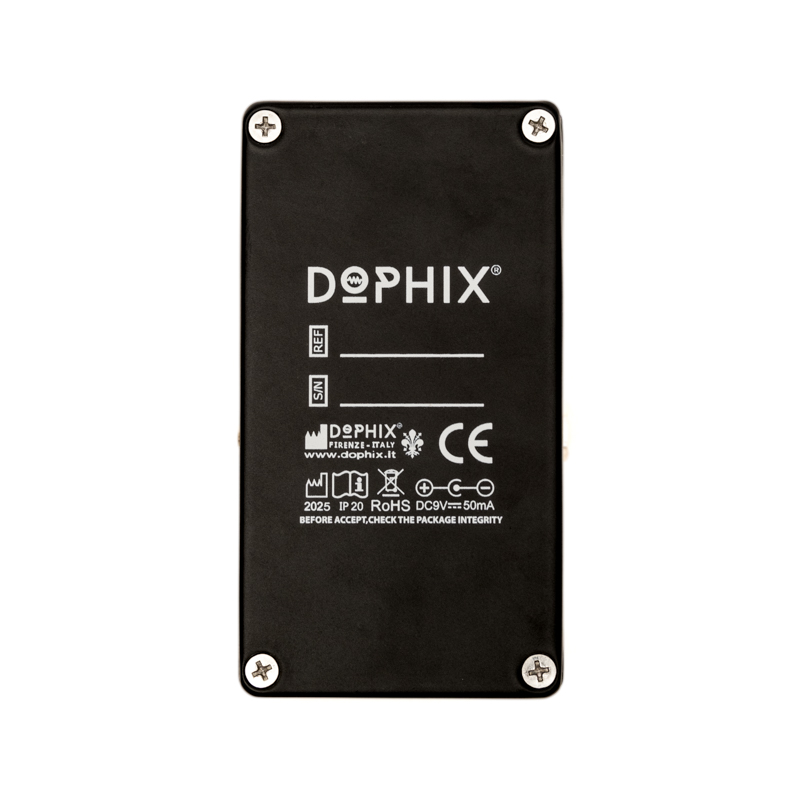

9 volts power supply DC through internal battery or external stabilized power supply. Battery replacement is possible by removing the four screws on the bottom cover.

Input impedance 1 Mohm, output 300 ohm.

Current with LED on 19ma, standby 500 UA.

Codice EAN: 8053839780003

TECHNICAL SPECIFICATIONS

Weight0.288 kg
Dimensions11 × 6 × 4 cm
Input/Output

Jack from 6.3 mm 1/4 “placed sideways to the pedal.

Switch

True Bypass

Power supply

9 volts power supply DC through internal battery or external stabilized power supply.

Battery replacement

It is possible by removing the four screws on the bottom cover.

Impedance

Input 1 Mohm, output 300 ohm.

Current

with LED on 19ma, standby 500 UA.

EAN Code

8053839780003
